Home > Stainless Steel Tubing > Stainless Steel 201 Tubing

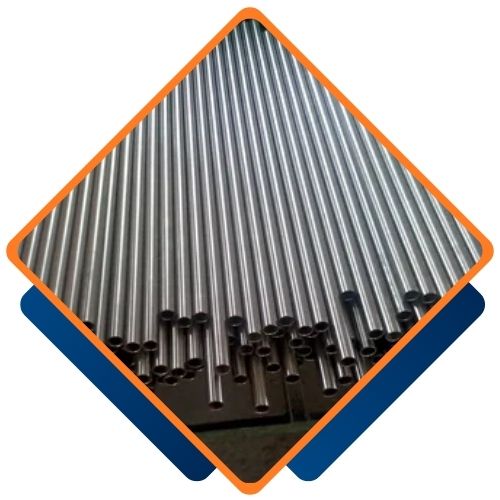

David Pipes and Tubes, located in Canberra, Australia, is a reliable manufacturer and supplier of Stainless Steel 201 Tubing. Renowned for its high quality, precision, and durability, this tubing boasts excellent corrosion resistance, solid mechanical strength, and long-lasting reliability. Crafted using advanced seamless and welded production methods, it guarantees uniform wall thickness, a smooth surface finish, and precise dimensions. Perfect for industrial, structural, and general-purpose uses, David Pipes and Tubes offers a diverse range of sizes and specifications tailored for the chemical, petrochemical, automotive, food processing, and marine sectors, ensuring dependable and efficient performance.
Stainless Steel 201 Tubing features 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese, providing good corrosion resistance along with moderate mechanical strength. It has a tensile strength ranging from 515–700 MPa, yield strength between 205–310 MPa, and an elongation of 30–40%. This tubing delivers reliable performance in moderately corrosive environments and maintains its mechanical stability during forming, welding, and fabrication processes. The seamless and welded construction guarantees smooth surfaces, precise dimensions, and consistent wall thickness, making it an excellent choice for various industrial applications.
Standard | ASTM, AISI, GB, JIS, customers’ requests available |
Size | Round Tube: OD: 16-119mm or customized |
Thickness | 0.25mm-3.0mm |
Length | 6m or according to customers’ request |
Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
Thickness: ±0.05mm | |
Length: ±0.5mm | |
Ends | In plain end or bevelled ends or as your requirements |
Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
B. Gloss #400,Mirror #600 – #1000 | |
C. Brushed | |
D. Wood Grain | |
E. Embossed, Threaded | |
Application | Decorations, constructions, food industry, etc. |
Certification | ISO, SGS |
Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

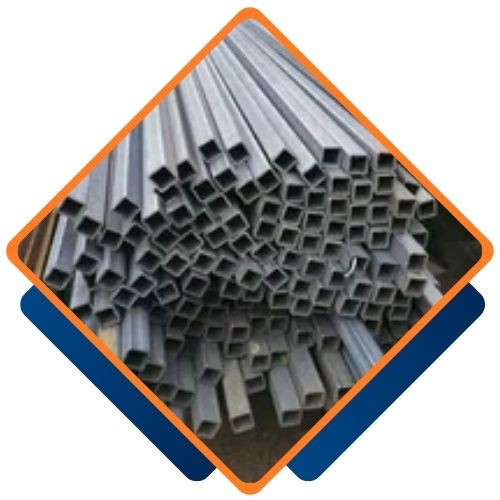

Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 201 Tubing from David Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
David Pipes and Tubes, a leading supplier of Stainless Steel 201 Tubing in Canberra, Australia, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At David Pipes and Tubes, we provide custom sizes of Stainless Steel 201 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
You’ll find Stainless Steel 201 Tubing commonly used in furniture, automotive parts, kitchen equipment, handrails, and structural applications. It’s also utilized in chemical processing, food and beverage systems, and marine settings where moderate corrosion resistance and strength are essential. Its durability, cost-effectiveness, and mechanical properties make it a top pick for general industrial and structural tubing needs.
