Stainless Steel 304 EFW Pipes Manufacturer, Supplier and Exporter in Canberra, Australia

David Pipes and Tubes is a top-notch manufacturer and supplier located in Canberra, Australia, focusing on high-quality Stainless Steel 304 EFW Pipes. These pipes are celebrated for their outstanding corrosion resistance, durability, and precision engineering. Crafted using the Electric Fusion Welding (EFW) process, they adhere to international standards, guaranteeing reliable performance across industrial, commercial, and architectural applications. At David Pipes and Tubes, there’s a strong emphasis on rigorous quality control and cutting-edge manufacturing techniques, ensuring that their products deliver strength, longevity, and versatility. Their Stainless Steel 304 EFW Pipes are perfect for piping systems, structural frameworks, and any application that demands high-performance, corrosion-resistant solutions.

Stainless Steel 304 EFW Pipes Supplier in Canberra, SS 304 EFW Pipes Exporter in Adelaide, SS 304 EFW Pipe Manufacturer in Melbourne, 304 Stainless Steel EFW Pipe Price List in Australia, Stainless Steel 304 EFW Pipes Supplier in Sydney, 304 High Temperature Stainless Steel EFW Pipes in Brisbane,1.4301 EFW Pipes Supplier in Melbourne

The composition of Stainless Steel 304 EFW Pipes includes chromium (18–20%) and nickel (8–10.5%), along with trace amounts of carbon, manganese, silicon, and phosphorus. This blend offers remarkable corrosion resistance, a tensile strength of about 505–750 MPa, and a yield strength ranging from 215–505 MPa. These pipes also showcase excellent ductility, toughness, and weldability, making them ideal for fabrication, forming, and high-performance industrial applications that require durability and long-lasting reliability in various operating conditions.

Stainless Steel 304 EFW Pipes Specification

Specification	ASTM A358 / ASME SA358
Specification	A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5
Grades	304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC.
Type	EFW, ELECTRIC FUSION WELDED
Outer Diameter Size	Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size)
Wall Thickness	Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness)
Length	01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size.
Ends	Plain Ends / Beveled Ends
Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered
Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Equivalent Grades for Stainless Steel 304 EFW Pipes

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
SS 304	S30400	1.4301	Z7CN18‐09	X5CrNi18-10	SUS 304	304S31	08Х18Н10

304 Stainless Steel EFW Pipes Chemical Composition

Grade		C	Ni	Si	N	S	Mn	P	Cr	Mo
SS 304	min.	–	8.0	–	–	–	–	–	18.0	–
SS 304	max.	0.08	10.5	0.75	0.10	0.030	2.0	0.045	20.0	–

SS 304 EFW Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
SS 304	515	40	205	92	201

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

TP 304 SS EFW Pipe Supplier in Australia, 304 Austenitic Stainless Steel EFW Pipes Exporter in Melbourne, EFW Pipe Stainless Steel UNS S30400 Manufacturer in Sydney, Stainless Steel 304 EFW Pipes Supplier in Canberra, SS 304 schedule 10 EFW Pipe Exporter in Brisbane

Why Choose Stainless Steel 304 EFW Pipes from David Pipes and Tubes?

Choosing Stainless Steel 304 EFW Pipes from David Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 304 EFW Pipes Supplier in Canberra, Australia

David Pipes and Tubes, a leading manufacturer and supplier of Stainless Steel 304 EFW Pipes in Canberra, Australia, offers a comprehensive range of high-quality pipes and tubing suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us a trusted choice for regional products.

EFW SS 304 Pipes Exporter in Australia, SS UNS S30400 EFW Pipe Price List in Canberra, SS 304 EFW Pipe Supplier in Adelaide, 304 SS EFW Pipes Exporter in Melbourne, Stainless Steel EFW Pipes 1.4301 Exporter in Sydney, SUS 304 EFW Pipes Price in Brisbane, 304 Stainless Steel EFW Pipes Weight Chart, Stainless Steel 304 EFW Pipes Thickness, SS S30400 EFW Pipes Supplier in Australia

304 Stainless Steel EFW Pipe Sizes

NPS Designator	Outside Diameter		Nominal Wall Thickness
	in.	mm	Schedule 5SA		Schedule 10SA		Schedule 40SA		Schedule 80SA
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
8	8.625	219.08	0.109	2.77	0.148	3.76	0.322	8.18	0.500	12.70
10	10.750	273.05	0.134	3.40	0.165	4.19	0.365	9.27	0.500B	12.70B
12	12.750	323.85	0.156	3.96	0.180	4.57	0.375B	9.52B	0.500B	12.70B
14	14.000	355.60	0.156	3.96	0.188B	4.78B	…	…	…	…
16	16.000	406.40	0.165	4.19	0.188B	4.78B	…	…	…	…
18	18.000	457.20	0.165	4.19	0.188B	4.78B	…	…	…	…
20	20.000	508.00	0.188	4.78	0.188B	4.78B	…	…	…	…
22	22.000	558.80	0.188	4.78	0.218B	5.54B	…	…	…	…
24	24.000	609.60	0.218	5.54	0.250	6.35	…	…	…	…
30	30.000	762.00	0.250	6.35	0.312	7.92	…	…	…	…

Physical Properties of SS 304 EFW Pipes

Grade	Density (kg/m3)	Specific Heat 0-1000C (J/kg.K)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Electrical Resistivity (n.m)
				0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
304	8000	500	193	17.2	17.8	18.4	16.2	21.5	720

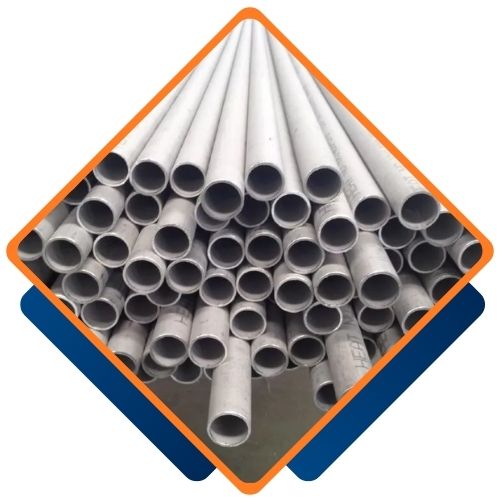

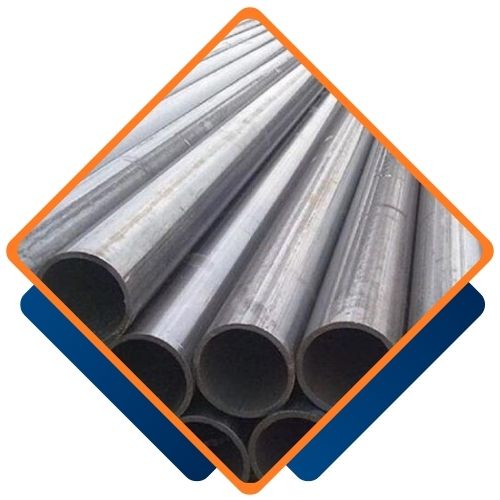

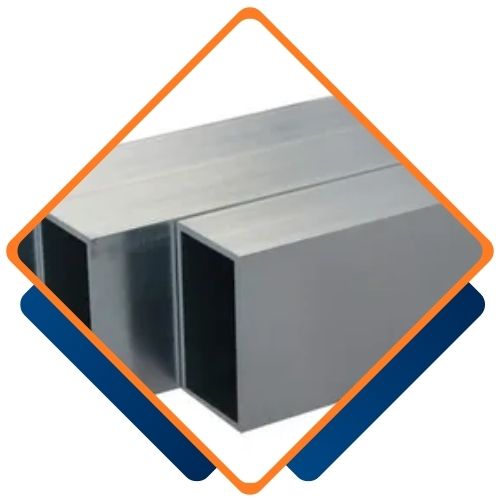

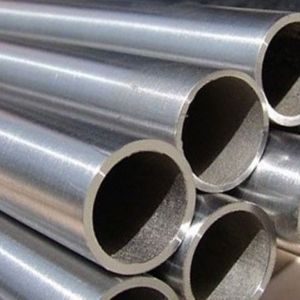

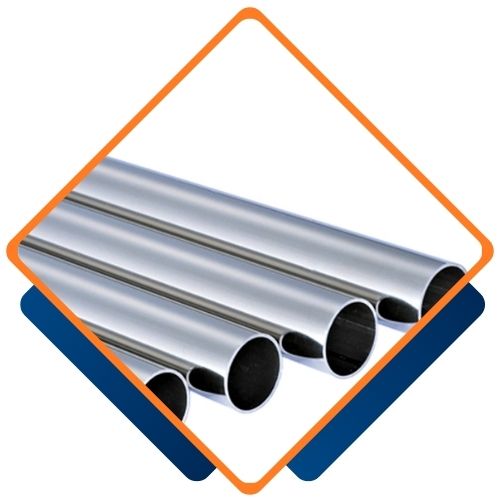

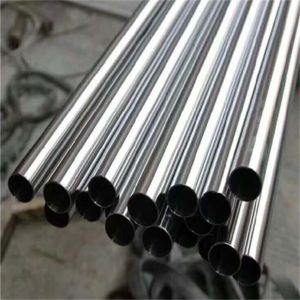

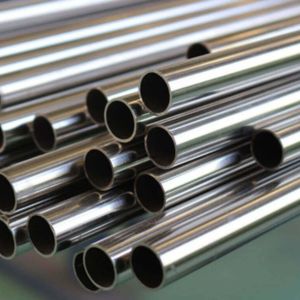

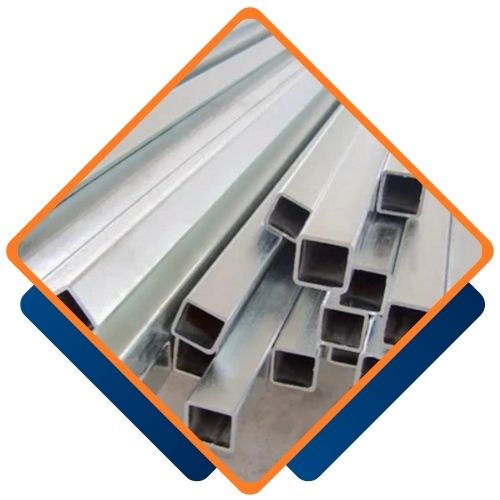

Types of Stainless Steel 304 EFW Pipes

Are Custom Sizes Available for Stainless Steel 304 EFW Pipes?

We offer custom sizes for Stainless Steel 304 EFW Pipes to meet your specific needs. Our dedicated team at David Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@davidpipes.com.

TP 304 SS EFW Pipe Exporter in Brisbane, SUS 304 EFW Pipes Sydney, 304 Stainless Steel EFW Pipe Supplier in Adelaide, ASTM A358 TP304 EFW Stainless Pipe Manufacturer in Melbourne, Stainless Steel 1.4301 EFW Pipes Dealer in Canberra, SS 304 EFW Pipe Supplier in Australia

David Pipes and Tubes’ Stainless Steel 304 EFW Pipes find extensive use in the chemical processing, food and beverage, pharmaceutical, and construction sectors. Their impressive corrosion resistance and mechanical strength make them perfect for water and fluid transport systems, pipelines, structural frameworks, and exhaust systems. Moreover, they are utilized in marine, automotive, and architectural projects where both durability and aesthetic appeal are essential. With their ease of fabrication, low maintenance needs, and long service life, Stainless Steel 304 EFW Pipes offer a versatile and reliable solution for industrial, commercial, and high-performance endeavors.
