Home > Stainless Steel >Stainless Steel 310 and 310S EFW Pipes

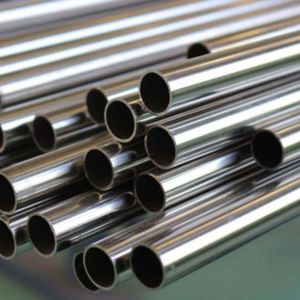

David Pipes and Tubes, located in Canberra, Australia, is a well-respected manufacturer and supplier of stainless steel 310/310S EFW pipes. These Electric Fusion Welded (EFW) pipes are specifically crafted to withstand high temperatures and corrosive environments, providing outstanding oxidation resistance, strength, and durability. They are perfect for industrial applications where high-temperature performance and structural integrity are essential. David Pipes and Tubes takes pride in their precision fabrication, ensuring smooth internal surfaces and compliance with international standards, which results in reliable and long-lasting piping solutions for industries like heat treatment, chemical processing, and power generation.
The stainless steel 310/310S EFW pipes are made up of chromium (24–26%) and nickel (19–22%), with the 310S variant having a lower carbon content that enhances weldability and minimizes carbide precipitation. These pipes boast impressive mechanical properties, including a tensile strength of 515–700 MPa, yield strength of 205 MPa, elongation of 40%, and a hardness of around 90 HRB. This unique composition grants them excellent resistance to oxidation, scaling, and sulfidation at high temperatures, along with remarkable creep resistance and structural stability during thermal cycling.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 310 | 1.4841 | S31000 | – | – | – | – | – |
| SS 310S | 1.4845 | S31008 | _ | – | – | – | – |
| Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
| 310 | min. | 19.0 | – | – | – | – | – | 24.0 | – | – |
| max. | 22.0 | 2.0 | 0.045 | 0.25 | 0.030 | 1.50 | 26.0 | |||
| 310S | min. | 19.0 | – | – | – | – | – | 24.0 | – | – |
| max. | 22.0 | 2.00 | 0.045 | 0.08 | 0.030 | 1.50 | 26.0 | |||
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 and 310S | 515 | 40 | 205 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 310 and 310S EFW Pipes from David Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 310 and 310S | 7750 | 200 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 720 |
We offer custom sizes for Stainless Steel 310 and 310S EFW Pipes to meet your specific needs. Our dedicated team at David Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@davidpipes.com.
You’ll find stainless steel 310/310S EFW pipes commonly used in furnaces, heat exchangers, boilers, refinery heaters, and high-temperature process systems. Their EFW construction guarantees consistent wall thickness, robust weld integrity, and precise dimensions for leak-proof performance. With their combination of high-temperature strength, corrosion resistance, and dependable manufacturing, 310/310S EFW pipes are ideal for chemical, petrochemical, power generation, and other industrial applications that demand long-term durability in extreme conditions.
