Home > Stainless Steel > Stainless steel 310H Welded Tubing
David Pipes and Tubes, located in Canberra, Australia, is a reputable manufacturer and supplier of top-notch stainless steel 310H welded tubing. These tubes are crafted for outstanding performance in high-temperature and corrosive settings, making them perfect for applications that demand strength, oxidation resistance, and structural stability. The stainless steel 310H welded tubing is made using cutting-edge welding techniques, ensuring precision, a smooth surface finish, and consistent mechanical properties. David Pipes and Tubes guarantees that their tubing meets international quality standards, making it suitable for use in heat exchangers, furnaces, petrochemical plants, and other rigorous industrial processes.
The stainless steel 310H welded tubing primarily consists of chromium (24–26%) and nickel (19–22%), along with a higher carbon content that enhances its high-temperature strength and creep resistance. It boasts a tensile strength of 515–700 MPa, yield strength of 205–275 MPa, elongation of 40%, and a hardness of up to 90 HRB. This unique composition offers excellent oxidation and corrosion resistance up to 1100°C, along with good weldability and formability, making it a great choice for thermal cycling and high-stress environments.
| 310H Stainless Steel Tube Finish | Polished, BA (Bright & Annealed),AP (Annealed & Pickled), MF |
|---|---|
| Stainless Steel 310H Tube Standards | ASTM A213,ASTM A269, ASTM A249,ASME SA213,ASME SA269, ASME SA249, NACE MR0175/ISO 15156, PED 97/23/EC,EN 10216-5 TC1 / TC2, AD 2000 |
| Stainless Steel 310H Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| 310H stainless steel tubing End | Plain End, Beveled End, Treaded, Ends are suitable for orbital welding |
| Marking | All 310H Stainless Steel tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Stainless Steel 310H Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Stainless Steel 310H tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Stainless Steel 310H tube Form | Straight or ‘U’ bent Tubes, Round,Boiler, Coil , LSAW Tubes, Square, Hydraulic, Rectangular, Hollow Etc. |
| Stainless Steel 310H Tube Type | EFW, Seamless , Fabricated, ERW, Welded |
| SS 310H tube Length | Single Random , Standard & Cut length , Double Random |
| Non-Electropolished | (CFOS) Cleaned for Oxygen Grade Service or Corrosive Systems, (BA) Bright Annealed or (AP) Annealed & Pickled for High-Purity |
| I.D. Surface Finish Options | 5, 7 & 10 µin. Ra |
| 310H stainless steel tubing Testing & Inspection | Visual inspection • Surface roughness measurement • Helium-leak testing • Scanning Electron Microscopy (SEM) • Auger Electron Microscopy (AES) • Election Spectroscopy for Chemical Analysis (ESCA or XPS) • Particle testing • Moisture testing |
| Tolerances | In accordance with: ASTM: A269 & A632, JIS: G 3459 |
| 310H stainless steel tubing Test Certificate | Laboratory Test Certificate from Govt. Approved Lab. Manufacturer Test Certificate according to EN 10204 3.1 B Under Third Party Inspection |
| Electropolished | (EP) Electropolished for Ultra High Purity Systems |
| 310H stainless steel tubingApplication | Oil Tube , Boiler and Heatexchange , Gas Tube, Fluid Tuber |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.0 | 0.045 | 0.030 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 310H Welded Tubing from David Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
David Pipes and Tubes is the largest supplier of Stainless Steel 310H Welded Tubing in Canberra, Australia. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | X5CrNi18-10 | 2332 | SUS 310H | ||
Yes, David Pipes and Tubes offer large custom designs for Stainless Steel 310H Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@davidpipes.com.

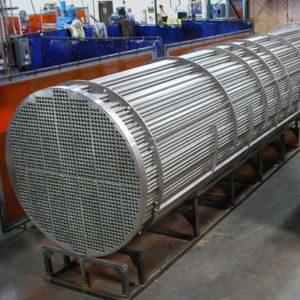

You’ll find stainless steel 310H welded tubing commonly used in furnaces, heat exchangers, boilers, and flue gas systems. Its ability to maintain structural integrity at high temperatures makes it ideal for high-pressure steam lines, refinery heaters, and exhaust systems. Plus, it performs exceptionally well in both carburizing and oxidizing atmospheres. The combination of strength, corrosion resistance, and thermal stability ensures that stainless steel 310H welded tubing provides reliable and long-lasting performance in critical heat transfer and processing applications across a variety of industries.
